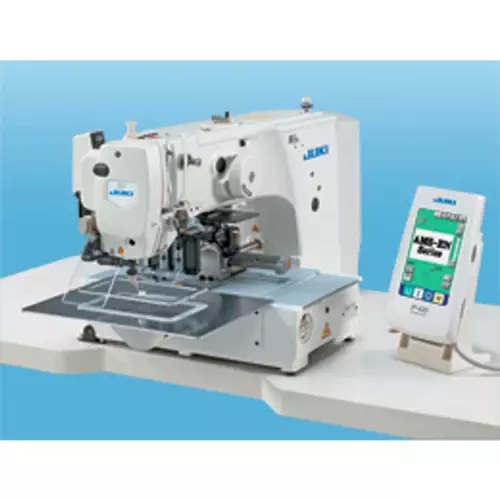

JUKI AMS-210ENHL-1510 Programmable Pattern Tacker With Table and Servo Motor

About JUKI AMS-210ENHL-1510

The 1510 model is well-received due to its moderate-sized sewing area. The 1510 area model with a motor-driven feeding frame has been newly developed to respond to market demand This model can be used in a plant that is not provided with pneumatic equipment.

MACHINE APPLICATIONS:

Improvement of seam quality

The position of the feed can be checked during sewing using the encoder-controlled X-Y drive stepping motor. This remarkably improves the accuracy of the feed. As a result, deformation of a sewing pattern which is likely to occur when sewing at a high speed or sewing a heavy-weight material, is significantly reduced.

MACHINE FEATURES:

CYCLE TIME IS SHORTENED:

• The sewing machine has achieved the industry's highest sewing speed of 2,800sti/min. The maximum sewing speed is reached by the 2nd stitch from the beginning of sewing. Since the sewing machine maintains its highest sewing speed immediately before the end of sewing and instantaneously decreases its speed, cycle time can be substantially decreased.
• JUKI's unique stepping-motor controlled thread trimming mechanism is adopted to enable speedy and consistent thread trimming performance.
• The machine demonstrates enhanced responsiveness due to the adoption of a main shaft direct-drive system.d

POWER CONSUMPTION IS SUBSTANTIALLY DECREASED:

• The AMS Series is an economically efficient model that has been designed to reduce power consumption.
• The AMS-210EN is an economically-efficient model which has been designed to reduce power consumption. The sewing machine has adopted a direct-drive system using a compact AC servomotor that is excellent in energy transmission to drive the main shaft and has adopted an encoder-control system that drives the stepping motor with a minimum of power by the material thickness and stitch length to control the X-Y drive mechanism. Power consumption of the new AMS Series is reduced by 30% when compared with JUKI's conventional AMS-210E.

ACTIVE TENSION:

Market-proven active tension has been introduced to the needle thread tension controller. The active tension enables pinpoint changes in the needle thread tension during sewing. Therefore, The needle thread tension can be set in conjunction with the material thickness and corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.

OPERATION PANEL PROVIDED WITH PROGRAMMABLE FUNCTIONS IP-420
(provided as standard)

The large-sized liquid crystal touch panel, which has been developed to ensure ease of operation, dramatically increases efficiency in edit work.

The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.

• Key-lock customization function
  The key-lock state can be set as desired. It is, therefore, possible to hide items that the operators should not handle.
• Simplified operation mode
  Simplifying set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.


PROGRAMMABLE INTERMEDIATE PRESSER

To support the sewing of multi-layered parts of materials, the lower dead point height of the intermediate presser can be changed steplessly during sewing (standard: 0~3.5mm; maximum: 0~7.0mm). The intermediate presser will now be able to clamp the material without fail, thereby preventing troubles in sewing, such as stitch skipping and thread breakage. Furthermore, flaws in the sewing product are prevented by maintaining the intermediate height as desired according to the material thickness. (The intermediate presser stroke is adjustable between 0 and 10mm.)

DOUBLE-STEPPED STROKE FEEDING FRAME

The feeding frame can be lowered in two steps. It is very convenient for finely positioning the material on the sewing machine. The stopping height of the feeding frame can be set as desired with ease.

The memory storage capability of the main body of the sewing machine has been dramatically enhanced.  Now, the USB-ready main body of the sewing machine uses many different kinds of media.d

Sewing data created with the IP-420 can be stored in the memory of the main body of the sewing machine. The memory storage capacity is 500,000 stitches and 999 patterns (max. 50,000 stitches per pattern) at the maximum. In addition to the CompactFlash 33 card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (FD (floppy disks), SM (SmartMedia), CF (CompactFlash), SD (Secure Digital Card), etc.) using a USB thumb device and a card reader. The maximum number of stitches that can be stored in the memory for each medium is approximately 50,000,000.

DOWNLOADS:

• Instruction Manual JUKI AMS-210ENHL-1510
• Catalog - JUKI AMS-210ENHL-1510
• Parts List - JUKI AMS-210ENHL-1510
• Cations For Safety - JUKI AMS-210ENHL-1510
• Input Instruction Manual - JUKI AMS-210ENHL-1510
• Power Switch Wiring Instructions - JUKI AMS-210ENHL-1510.pdf
• Ring Core Instructions - JUKI AMS-210ENHL-1510

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
