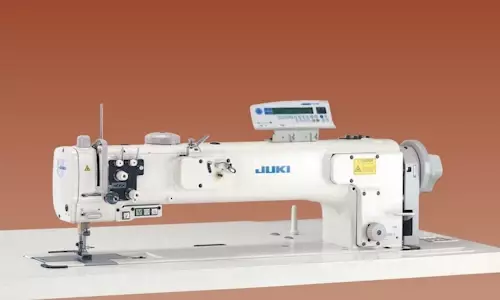

About the 2216N-7 Single Needle, 2266N-7 Double Needle

Long-arm, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook and Automatic Thread Trimmer

The long-arm unison-feed lockstitch machine with vertical-axis large hook with an automatic thread trimmer is best suited to processes that require a longer distance from the machine arm to the needle, such as reinforcement stitching and topstitching in tape attachment processes for sewing furniture or car seats.

MACHINE FEATURES:

Longer distance from machine arm to needle
Higher productivity
The machine adopts a fully automatic lubricating method
The presser foot lift is as high as 16mm
The vertical stroke of the walking foot and presser foot can be easily set and changed
The standard machine lets the operator adjust the vertical stroke of the walking foot and presser foot (DL device)
Thread trimming without fail

MACHINE SPECIFICATIONS:

Max. Sewing Speed: 3,000sti/min
Max. Stitch Length:
- LU-2216N-7: 9mm (normal/reverse feed)
- LU-2266N-7: 6mm (normal/reverse feed)
Needle Bar Stroke: 36mm
Needle Gauge:
- LU-2266N-7: 10mm (standard)
Lift of the presser foot:
- By hand: 9mm
- Auto: 16mm
Auto Lifter: Provide as standard (pneumatic auto-lifter: AK142)
Thread take-up: Link type
Alternating vertical movement: 1～6.5mm
DL Device: Provide as standard
Hook: Vertical axis 1.6 fold-capacity hook
Needle at time of delivery:
- LU-2216N-7: 134×35 (Nm140) Nm100～Nm180
- LU-2266N-7: 134×35 (Nm140) Nm100～Nm160
Thread:
- LU-2216N-7: #30～#4, B46～B138, Nm=60/3～20/3
- LU-2266N-7: #20～#5, B69～B138, Nm=40/3～20/3
Safety Mechanism: Provided as standard
Lubrication: Automatic
Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Distance from needle to machine arm: 650mm
Bed Size: 917mm×178mm
Weight of machine head:
- LU-2216N-7: 90kg
- LU-2266N-7: 95kg
Automatic Reverse Feed Function: Provided as standard
Compressed Air/ Air Consumption: 0.5MPa (5kgf/cm2), 0.3N /min.
Power Requirement: Single-phase 110～120V, 220～240V, 3-phase 200～220V, 220～240V

DOWNLOADS:

LU-2216n7 Catalog

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

They use up to 90% less power than clutch motors
They are 1/3 lighter than clutch motors
With a flick of the switch you can reverse motor rotation
No parts to wear out or adjust.
No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
