Juki LZH-1290 1-Needle Lockstitch 8mm Zigzag Large Hook Industrial Sewing Machine With Table and Servo Motor
Juki LZH-1290 1-Needle Lockstitch 8mm Zigzag Large Hook Industrial Sewing Machine With Table and Servo Motor
reseller raitng

Juki LZH-1290 1-Needle Lockstitch 8mm Zigzag Large Hook Industrial Sewing Machine With Table and Servo Motor

SKU: LZH-1290
Weight: 1 lbs
Vendor: JUKI
Our Price: $4699.00
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.
Remained in stock: 1

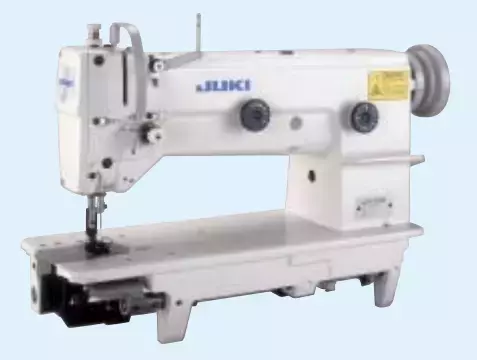

JUKI LZH-1290

1-Needle Lockstitch 8mm Zigzag Large Hook Industrial Sewing Machine Comes With Table, Legs, Servo Motor, and LED Lamp

The machine tenses thread uniformly over the zigzag stroke to produce beautifully finished stitches at a high speed. With its extended zigzag width, higher presser foot lift, and newly introduced horizontal-axis double-capacity hook, the machine upgrades the functions required for the sewing of heavy materials. Equipped to handle a wider range of thread counts, the machine also delivers improved abilities for the sewing of decorative stitches and overedging. In addition, the AC servo motor/controller for the model with the automatic thread trimmer has been fully reconfigured to provide higher motor power and quicker actuation, thereby ensuring smooth operation.

MACHINE FEATURES:

CONSISTENT SEWING PERFORMANCE AT HIGH SPEED
With its newly incorporated triangular cam, the machine uniformly tenses thread in zigzag strokes regardless of the needle position, and the needle always enters the material at right angles. This prevents the needle from swaying during zigzag stitching.

WIDER ZIGZAG WIDTH

The machine offers outstanding capabilities for the sewing of sports shoes and leather shoes that require a wider zigzag width. The zigzag width can be quickly and easily adjusted by the dial mounted on the front face of the machine

HIGHER LIFT OF THE PRESSER FOOT

To ensure smooth sewing of heavy materials, the lift of the presser foot is as high as 14 mm (13 mm for the LZH1290-7)

THE FREQUENCY OF BOBBIN THREAD REPLACEMENT IS REDUCED
By reducing the frequency of bobbin thread replacement, the newly introduced horizontal-axis double-capacity hook contributes to increased efficiency in sewing. This feature is extremely helpful when sewing with thick thread.

MACHINE SPECIFICATIONS:

  • Max sewing speed: 2,000rpm
  • Max stitch length: 6mm
  • Zigzag width: Max. 8mm (adjustable to 10mm)
  • Zigzag width adjustment method: by dial
  • Needle: SY1906 (Nm100) Nm90~Nm110
  • Needle bar stroke: 35mm
  • Presser foot lift: 6mm by hand, 14mm by knee
  • Thread take-up: Link type
  • Hook: Horizontal-axis full-rotary double-capacity hook
  • Needle: SY1906 (Nm100) Nm90~Nm110
  • Thread: #50~#8, B33~B92, Nm=120/3~30/3
  • Lubrication: By an oiler (hook: automatic)
  • Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Distance from needle to machine arm: 295mm

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch, you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
