Consew P1565RB Series high-speed, two-needle lockstitch machine equipped with a split needle bar for angular stitching "12" or "14" or "18" or "25" Industrial Sewing Machine With Table and Motor

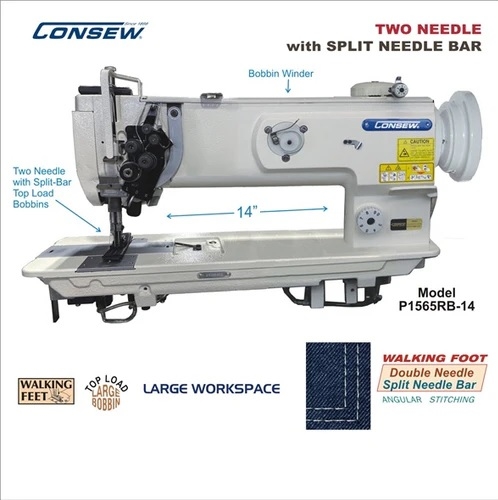

Consew P1565RB Series high-speed, two-needle lockstitch machine equipped with a split needle bar for angular stitching
reseller raitng
Product Pictures

Consew P1565RB Series high-speed, two-needle lockstitch machine equipped with a split needle bar for angular stitching "12" or "14" or "18" or "25" Industrial Sewing Machine With Table and Motor

SKU: Consew P1565RB
Weight: 150 lbs
Vendor: Consew
Our Price: $4099.95
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

Consew P1565RB (12", 14", 18",25")

Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor, and LED Lamp

Important Notice:

Please note that the 18" and 25" models are supplied without T-legs and caster wheels.

In addition, shipping costs may vary depending on whether a forklift is available at the delivery location. To ensure an accurate shipping quotation and discuss the available options for the 18" and 25" machines, please contact us before placing your order.

About Consew P1565RB

Two-Needle Split Needle Bar Lockstitch Industrial Sewing Machine With Table and Direct Drive Servo Motor

This fully automatic machine includes air cylinders for the foot lift, reverse feed, and trim functions.

  • Designed for automotive, marine, leather, canvas, and general upholstery.
  • For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
  • Designed for stitching such products as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travel ware accessories, sports, and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc

MACHINE FEATURES:

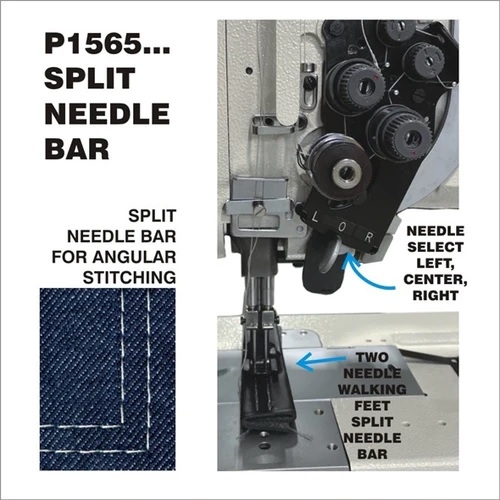

  • Two Needles with Split Needle Bar for Angular Stitching.
  • Large Top Load Bobbins
  • Built-in Bobbin Winder
  • Walking Foot
  • Automatic Foot Lift (Optional)
  • Semi-Automatic Lubrication

MACHINE SPECIFICATIONS:

  • Speed, maximum: 2000 - 2500 spm (* Speed depends on thread, material, and operation.)
  • Stitch Length: Max. 9mm Adjustment By Dial
  • Standard or Full Function: Computerized Function
  • Presser Foot Lift:
    • By Hand: 9 mm
    • By Knee: 16mm
  • Lubrication: Semi-Automatic
  • Bobbin: U or S
  • Needle: 135 x 17 (DPX17)
  • Needle Gauges: 1/4” to 1” (Custom gauges also available)
  • Power: 110 or 220 V. 1-Phase

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.
