JUKI LBH-1790 Electronic Buttonhole Sewing Machine With Table And Servo Motor
JUKI LBH-1790 Electronic Buttonhole Sewing Machine With Table And Servo Motor
More Product Pictures

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI LBH-1790 Electronic Buttonhole Sewing Machine With Table And Servo Motor

JUKI LBH-1790 Electronic Buttonhole Sewing Machine With Table And Servo Motor
More Product Pictures
SKU: LBH-1790
Weight: 1 lbs
Vendor: JUKI
Our Price: $8999.99
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

JUKI LBH-1790

Electronic Buttonhole Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

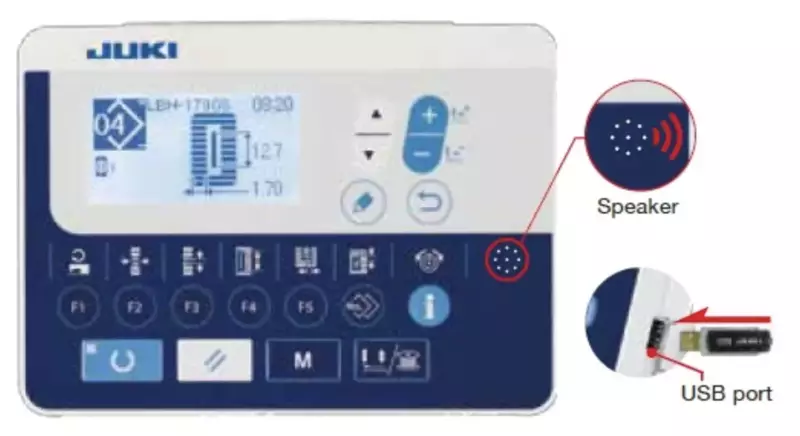

JUKI Simple Series sewing machine LBH-1790S has been designed to have simplified and narrowed down capabilities that are essentially required to produce JUKI's established seam quality. In addition, it supports the operator with the voice guidance system to improve work efficiency

MACHINE SPECIFICATIONS:

  • Max. sewing speed:  4,200sti/min
  • Size of cloth cutting knife:  6.4~31.8mm (1/4"~1-1/4")
  • Bartacking width:  Max. 5mm (with special-specification part: Max. 10mm)
  • Buttonhole length:  Max. 41mm (optional: 70mm, 120mm)
  • Lift of the work clamp:  14mm (17mm when the reverse-rotation needle-up function is used)
  • Number of standard patterns:  30 patterns
  • Number of patterns that can be input:  Max. 99 patterns
  • Machine head drive system:  Compact AC Servo Motor (direct-drive system)
  • Needle:  DP×5 (#11J) #11J~#14J

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
