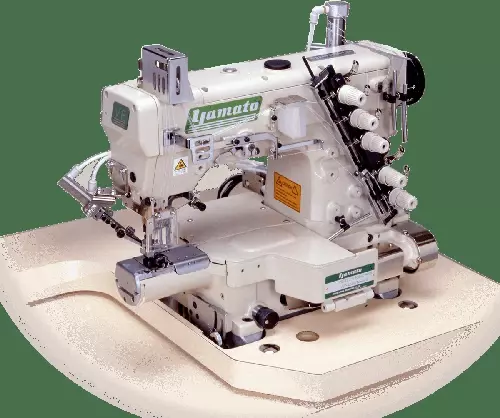

Yamato VE-8F Series High-Speed Small Cylinder Bed Interlock Stitch Machine With Active Thread Control System With Table and Servo Motor

SKU: VE27

Weight: 1 lbs

Vendor: Yamato

Choose Model:

Head Only :

Upgrade to T-Leg Table w/ Wheels:

Assembled or Unassembled:

If assembled, ship to residential address:

If shipped to commercial address:

Call for Details: 1.800.868.4419

About the VE-8F Series

VE2711-8F
3(2) Needle 5(4) Threads Small Cylinder Bed Interlock Stitch Machine for Hemming with Active Thread Control
This model is applicable for hemming on small tubular articles, such as cuffs of long-sleeved shirts and ankles of pants.

VE2713-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Covering with Active Thread Control
The small cylinder machine is applicable for covering small circular articles, such as cuffs and necklines of sweatshirts, and ankles of sweatpants. Also, thanks to its short cylinder length, little obstruction is worried when covering the armholes of raglan sleeve shirts.

VE2713P-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Covering with Puller with Active Thread Control (P = Tooth Rollers)
VE2713P-8F with a puller system (P = Tooth Rollers).

VE2740PR-8F
3(2) Needle 5(4) Thread Small Cylinder Bed Interlock Stitch Machine for Top Stitching on Pre-Attached Elastic Tape with Puller with Active Thread Control (PR = Flat Rubber Rollers)
For top stitching on pre-attached elastic tape attached.
With puller mechanism (PR = Flat Rubber Rollers)

MACHINE APPLICATIONS:

Applicable for small tubular articles, such as cuffs of long sleeve shirts, neckline of sweatshirts, and ankles of pants.

MACHINE FEATURES:

Easy material handling and neat finish thanks to the differential feed dogs installed in 180 mm cylinder
Suitable for microfibers. Active Thread Control supports ideal seams over a wide range from soft and elastic seams for microfibers to tight seams for outer wears
New Feed Driving Mechanism (Patented)
New Needle Guard Mechanism (Patented)

MACHINE SPECIFICATIONS:

Number of Needles: 3(2)
Number of Threads: 5(4)
Needle Distance: 4.8, 5.6, 6.4 (3.2, 4.0)
Stitch Length: 1.4 - 4.2mm
Differential Ratio: 1:0.8 - 1:1.4mm
Presser Foot Lift: 7mm
Needle Stroke:
- VE2713-8F, VE2713P-8F, VE2740PR-8F: 33 (31)mm
Max Sewing Speed: 4,500spm
With Puller:
- VE2713P-8F: Tooth Puller(P)
- VE2740PR-8F: Flat Rubber Rollers Ruller (PR)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

They use up to 90% less power than clutch motors
They are 1/3 lighter than clutch motors
With a flick of the switch, you can reverse motor rotation
No parts to wear out or adjust.
No matter how hard you press the foot pedal configured speed remains the same

Because of the Servo motor speed control, most users find the machine easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

MACHINE DEVICES:

Operation:
- UT-A32, UT-A34F, UT-A34F/ST2-A, UT-A42,UT-A44F, UT-A44F/ST2-A: Air Operated
- UT-2, UT-4, UT4/ST2: Solenoid Type
Under Thread Trimmer: Yes
Foot Lifter:
- UT-A32, UT-A34F, UT-A34F/ST2-A, UT-A42,UT-A44F, UT-A44F/ST2-A, UT-4, UT4/ST2: Yes
Wiper:
- UT-A32, UT-A34F, UT-A42, UT-A44F, UT-2: Yes
Top Cover Thread Trimmer:
- UT-A34F / ST2-A, UT-A44F / ST2-A, UT4 / ST2: Yes
Waste Collection:
- UT-A42, UT-A44F, UT-A44F / ST2-A: Yes
Remarks:
- UT-A32: Wiper & foot lifer works at once
- UT-A34F: Wiper & foot lifer works independently
- UT-A34F / ST2-A: No wiper
- UT-A42: For machines with a left/right-hand fabric trimmer
  UT-A32 with waste collection function
- UT-A44F: For machines with a left/right-hand fabric trimmer
  UT-A34 with waste collection function
- UT-A44F / ST2-A: For machines with a left/right-hand fabric trimmer
  UT-A34/ST2-A with waste collection function
