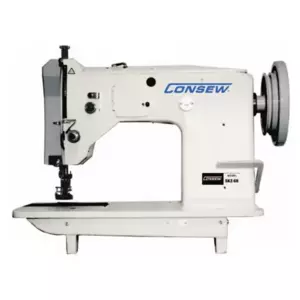

Consew 199R-2A-1 Single Needle, Drop Feed, Zig-Zag, Lockstitch Industrial Sewing Machine With Table and Servo Motor

MACHINE APPLICATIONS:

• Three step/two stitch zig-zag Federal stitch 308
• For sewing elastic and other stretch materials, as well as for ornamental stitching
• For stitching such products as boat and truck covers, tents, awnings sails, parachutes, tarpaulins, canvas bags, also many items of military and naval equipment
• Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
• Especially desirable where reinforced stitch is necessary
• Also available with special fittings for rope tacking operations
• Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment

MACHINE FEATURES:

• Horizontal axis transverse rotary hook
• Maximum width of zig-zag: 3/8" (9.5mm)
• Straight stitcher when zig-zag is set to 'O' mm
• Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
• Locking zig-zag width regulator
• Reverse stitching
• Special fittings available for rope end and rope loop stitching
• Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included)

DOWNLOADS:

199R Series Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
