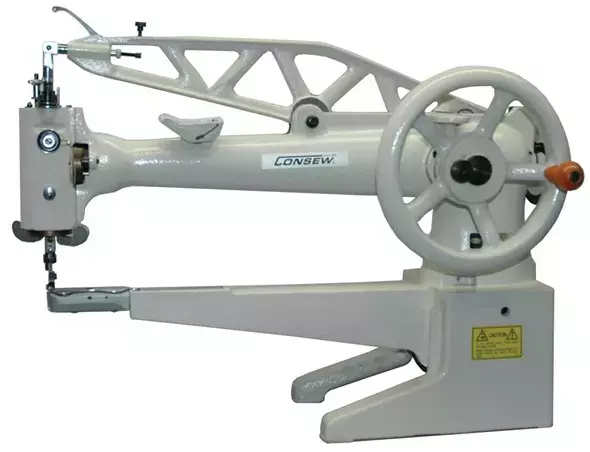

Consew 29 Series

Hand Driven Single Needle 18 Inch Cylinder Arm Shoe Repair and Mending Lockstitch Industrial Sewing Machine Comes With Table, Legs, and LED Lamp

With: Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate

MACHINE APPLICATIONS:

Repairing of leather materials and shoe uppers.

MACHINE FEATURES:

  • Extra small cylinder bed
  • Oscillating Shuttle
  • Universal upper feed for stitching in any direction without turning work
  • Handwheel can be mounted on the front or right end of the machine
  • Wheel pulley "V" groove for motor drive
  • Double-ended needle plate with different size holes at the back end to accommodate various size needles
  • Adjustable thread take-up lever
  • Adjustable presser foot pressure and thread tension
  • The machine can be driven by foot treadle, hand crank, or electric motor
  • Available in regular and large bobbin (B) versions
  • Available in regular and long arm (L) versions

MACHINES AVAILABLE AND SPECIFICATION:

MODEL 29

  • Speed Max S.P.M:  500
  • Clearance Under Presser Foot:  13/32 s.p.i. (10.5mm)
  • Stitch Length:  3.5 s.p.i. (1-7mm)
  • Hook Size:  Small
  • Work Space:  12" (310mm)
  • Width of Cylinder Bed:  1" (25.4mm)
  • Depth of Cylinder Bed:  7/8" (22.2mm)
  • Needle:  29x3, Style 3741
  • Net Weight:  62 lbs. (28kgs)
  • Gross Weight:  70.5 lbs. (32kgs)
  • Total Carton Size:  3 3.2 ft (.09cbm)

MODEL 29B

  • Speed Max S.P.M:  500
  • Clearance Under Presser Foot:  13/32 s.p.i. (10.5mm)
  • Stitch Length:  3.5 s.p.i. (1-7mm)
  • Hook Size:  Large
  • Work Space:  12" (310mm)
  • Width of Cylinder Bed:  1 5/32" (27.8mm)
  • Depth of Cylinder Bed:  1 3/32" (29.4mm)
  • Needle:  29x3, Style 3741
  • Net Weight:  62 lbs. (28kgs)
  • Gross Weight:  70.5 lbs. (32kgs)
  • Total Carton Size:  3 3.2 ft (.09cbm)

MODEL 29L

  • Speed Max S.P.M:  500
  • Clearance Under Presser Foot:  13/32 s.p.i. (10.5mm)
  • Stitch Length:  3.5 s.p.i. (1-7mm)
  • Hook Size:  Small
  • Work Space:  18" (460mm)
  • Width of Cylinder Bed:  1" (25.4mm)
  • Depth of Cylinder Bed:  7/8" (22.2mm)
  • Needle:  29x3, Style 3741
  • Net Weight:  77 lbs. (35kgs)
  • Gross Weight:  88 lbs. (40kgs)
  • Total Carton Size:  5.3 ft (.15cbm)

MODEL 29BL

  • Speed Max S.P.M:  500
  • Clearance Under Presser Foot:  13/32 s.p.i. (10.5mm)
  • Stitch Length:  3.5 s.p.i. (1-7mm)
  • Hook Size:  Large
  • Work Space:  18" (460mm)
  • Width of Cylinder Bed:  1 5/32" (27.8mm)
  • Depth of Cylinder Bed:  1 3/32" (29.4mm)
  • Needle:  29x3, Style 3741
  • Net Weight:  77 lbs. (35kgs)
  • Gross Weight:  88 lbs. (40kgs)
  • Total Carton Size:  5.3 ft (.15cbm)

* Depending on materials and thread
