JUKI MO-6804S-0A4-150 Semi-Dry-Head High Speed Overlock Safety Switch Industrial Serger With Table and Servo Motor
JUKI MO-6804S-0A4-150 Semi-Dry-Head High Speed Overlock Safety Switch Industrial Serger With Table and Servo Motor
reseller raitng

JUKI MO-6804S-0A4-150 Semi-Dry-Head High Speed Overlock Safety Switch Industrial Serger With Table and Servo Motor

SKU: MO-6804S-0A4-150
Weight: 1 lbs
Vendor: JUKI
Our Price: $1699.99   Market Price: $2126.00
Save: $426.01 per unit
There will be a surcharge of $150 if shipped to a residential address
Please, enter quantity for at least one product
Quantity unavailable. Try selecting a smaller quantity.

Spare Parts Kit - JUKI MO-6800 (VOL 2) $79.99

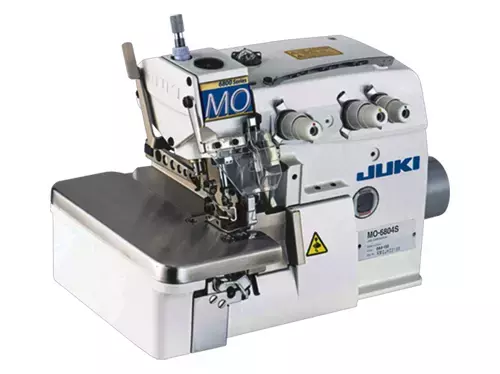

JUKI MO-6804S-0A4-150

3-Thread Semi-Dry-Head High Speed Overlock Safety Switch Industrial Serger Comes With Table, Legs, Servo Motor and LED Lamp

This advanced overlock / safety stitch machine is easier to use and promises superior cost effectiveness.

The MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock / safety stitch machine is easier to use and promises superior cost-effectiveness.

The machine achieves beautifully finished seams of improved quality even when run at a high speed.

The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.

The machine is provided with functions which contribute to easier operation.

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.

MACHINE SPECIFICATIONS:

  • Stitch Type: 1 Needle Overlock
  • Stitch Style in USA: 504
  • Max Sewing Speed: 7,000 Stitches per Minute
  • Stitch Length: 0.6 ~ 3.8 (4.5) mm
  • Overedging Width (mm): 1.5, 4.0
  • Differential Feed Ratio: For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
  • Needle Bar Stroke: 24.5mm(60H:27.0mm)
  • Inclination Angle of the Needle: 20°
  • Needle Bar Bushing: Lower bushing method
  • Needle: DC×27 (excluding some subclass model)
  • Max. Lift of the Presser Foot: 7mm (excluding some subclass model)
  • Max. Presser Foot Pressure: 63.7N (6.5kgf)
  • Stitch Adjusting Method: By push-button
  • Differential-Feed Adjusting Method: By lever (with micro-adjustment)
  • Weight of the Machine Head: 27kg
  • Lubrication: Automatic
  • Lubricating Oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Needle Cooler: Provided as standard
  • Needle Thread Heat Remover: Provided as standard
  • Micro-Lifter: Option

DOWNLOADS:

    U.S. WARRANTY:

    90 Days labor on defects in materials and workmanship.

    ** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

    DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

    THE ADVANTAGES OF A SERVO MOTOR:

    • They use up to 90% less power than clutch motors
    • They are 1/3 lighter than clutch motors
    • With a flick of the switch you can reverse motor rotation
    • No parts to wear out or adjust.
    • No matter how hard you press the foot pedal configured speed remains the same

    Because of Servo motor speed control, most users find the machine is easier to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

    PARTS for the JUKI MO-6804S


    NEEDLE PLATE

    Needle Plate: #401-59834


    LOOPERS
    Upper Looper: #700-00798
    Lower Looper: #700-00405
    Chain Looper: #700-00473

    KNIVES
    Upper Knife: #700-00229
    Lower Knife: #700-00399


    PRESSER FOOT
    Presser Foot Assembly: #401-59849
